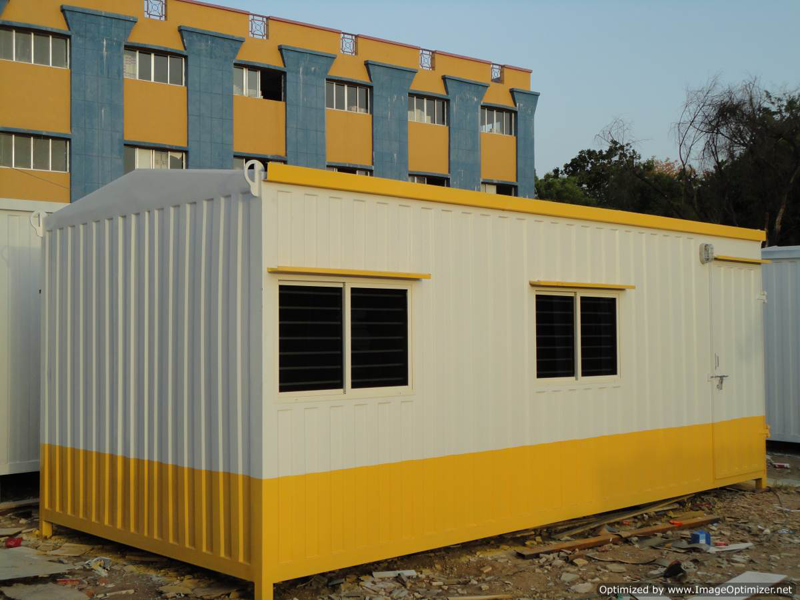

Porta Cabins

Our Porta Cabins are Manufacture for making your site accommodation portable and comfortable even in a remote location. These Porta Cabins are use for site office accommodation lobour rooms, luxury cottage, store rooms, warehouses and many more. We are making these porta cabins since nine year and improving our Quality by using various Quality techniques from wooden porta cabins to steel Porta Cabins and Puf Porta Cabins and we are coming up with some new and innovative product very soon.

The other specifications include:
Base Frame:
  • Base frame used are of pressed mild steel channel section
  • Main structural element are of 'C' Channels 100 mm x 50 mm and cross member is of 'C' channels section size 75 mm x 40 mm
  • Side and End Walls:

    1. Side & end frames made out of pressed sections of suitable profiles/pillars of sufficient strength
    2. 9 mm MDF board used for interior walls
    3. All steel sheets used are treated for corrosion resistance
    4. Vertically corrugated Sheet Panels that are continuously welded to top side and base structures to offer better strength to weight ratio
    5. All gaps sealed at edges & at seams, bottom etc for preventing ingress of moisture

    Flooring Systems:

    1. Bottom frame provided of 18 mm thick plywood, bison panel/E board (fixed by means of self taping screws)
    2. PVC vinyl flooring fixed on panel

    Roof:

    1. Interior panelling is done in 9 mm MDF board with adequate insulation

    Paint:

    1. Epoxy Zinc Phosphate primer and synthetic Epoxy paints used for final 2 coats (Corrosion free and fire proof paints)

    Insulation:

    1. 25 mm thick Glass wool insulation used for walls as well as 50 mm thick Glass wool insulation provided for roof

    Inner Panelling:

    1. Aesthetically finished Interiors that provide custom built appearance with high quality workmanship
    2. All vertical & horizontal corners neatly and smoothly finished with Aluminium sections
    3. Panelling of side walls & roof is of 9 mm thick decorative laminated MDF board

    Main Entry Door:

    1. The door interiors finished with same material matching with that of bunk house interiors
    2. Doors provided with locking arrangement with separate handles of both sides of door as required

    Aluminium Windows:

    1. Aluminium sliding type powder coated windows that are made of aluminium section which is 4 mm thick tinted glass.

    Electrical System:

    1. Bunk houses provided with concealed electrical copper cables & wiring suitable for 250 volt, 50 HZ single phase AC power supply
    2. Copper cables used are of 3/19 cable for lighting circuits
    3. ISI mark & concealed PVC conduits insulated copper wire used for wiring in PVC conduit with small size distribution board with MCB protection and to separate with main supply
